PEROVSKITE
34.22%
Perovskite tandem cell technology based on N-type TOPCon achieves a conversion efficiency of 34.22%.
Third-party certification of laminated cell
Voc exceeding 2.01 V
Theoretical efficiency limit is
45-46%.
Tandem Perovskite Solar Cells:
Tandem perovskite solar cells are a high-efficiency photovoltaic technology that stacks semiconductor materials with different bandgap widths to more fully utilize the solar spectrum:cite[1]. Such cells typically consist of a wide-bandgap top cell and a narrow-bandgap bottom cell, connected by a tunnel recombination junction.
Perovskite VS Topcon
Perovskite
Comparison Dimensions
Topcon
↑ Ultra-high
(single junction 31%, tandem >43%)
Theoretical efficiency limit
↑ High
(theoretical limit of monocrystalline silicon is 29.4%)
~16-18% (module)
(laboratory >26%)
Current mass production efficiency
~24-26% (modules)
(Highly mature technology)
↓ Extremely low potential
(solution process + low-temperature processing, minimal material usage)
Manufacturing cost
↑ Higher
(High-temperature process + high-purity silicon material, significant equipment investment)
↓ Simple
(coating/printing process, 5-10 steps)
Process complexity
↑ Complex
(High-temperature diffusion/deposition, 15+ process steps)
⚠️ Early stage
(pilot line operation, stability to be verified)
Industrialization maturity
✅ Mature
(Global mass production, dominant in the mainstream market)
❌ Significant challenges
(Sensitive to water and oxygen, ion migration, photothermal degradation)
Long-term stability
✅ Excellent
(25-year warranty, complete empirical data)
⚠️ Lead risk
(Requires recycling control, lead-free R&D in progress)
Environmental friendliness
✅ Green
(silicon material is non-toxic, mature recycling system)
✅ Super strong
(Flexible, translucent, colorful)
Application flexibility
❌ Limited
(mainly rigid modules)
⭐ Disruptive
(Stacked cells, low-cost innovation)
Technological potential
📈 Progressive
(efficiency approaching theoretical limit)
Business Scope
Performance testing and grading
Measure the photoelectric conversion efficiency, IV curve, and EL imaging to detect defects, and classify them according to power.
这里是占位文字

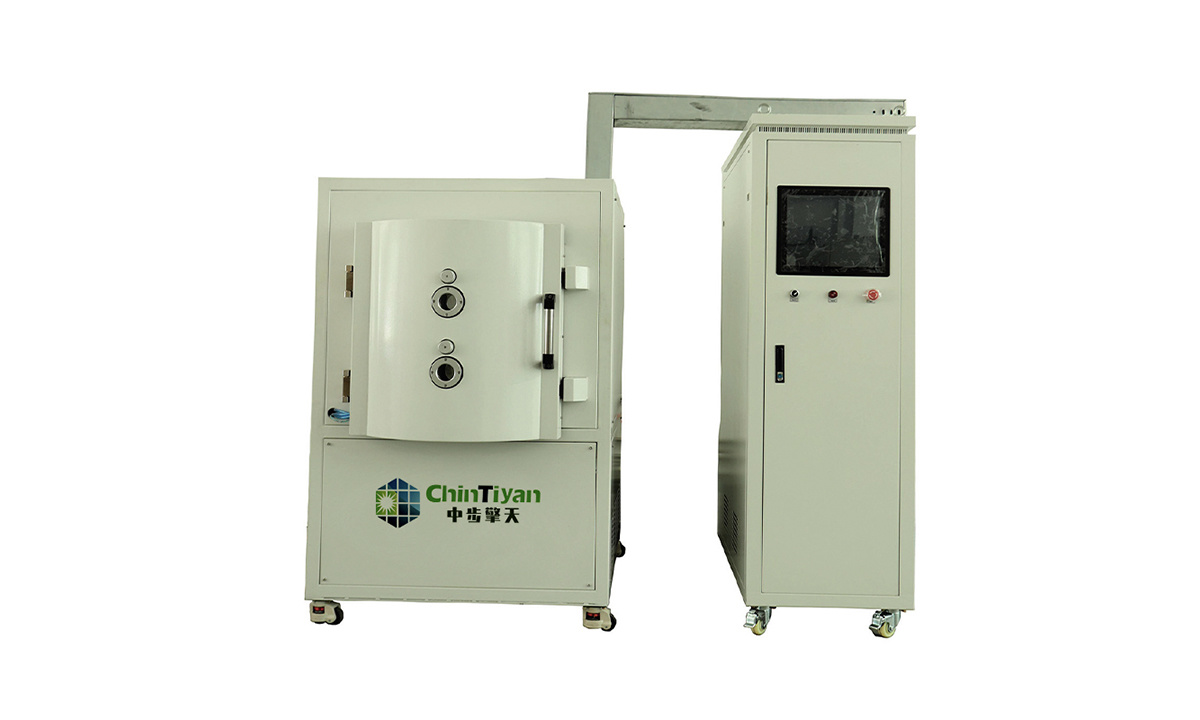

Encapsulation
Use high-barrier materials (such as POE film + glass/back sheet) for lamination and encapsulation to strictly isolate water and oxygen.
这里是占位文字

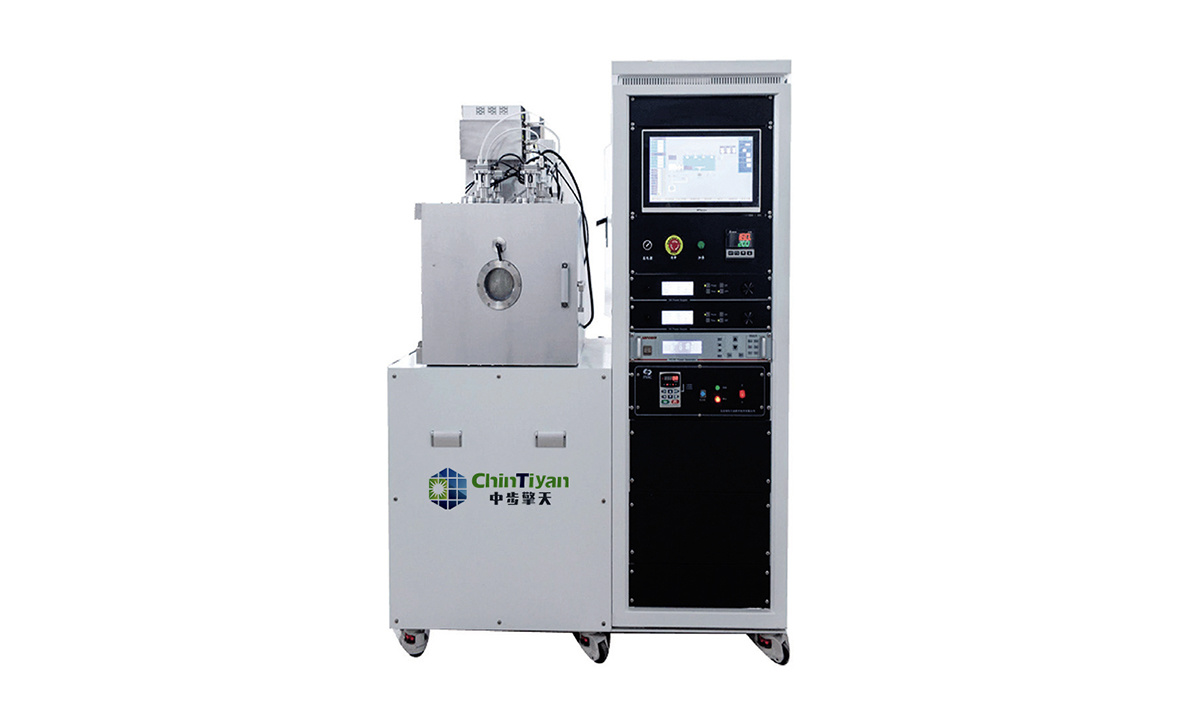

Back electrode deposition
Vapor deposit or sputter metal electrodes (such as Ag, Au).
这里是占位文字
Laser patterning (key to series connection)
Use laser etching to divide the entire cell into P1, P2, and P3 lines and connect them in series to form sub-cells.
这里是占位文字

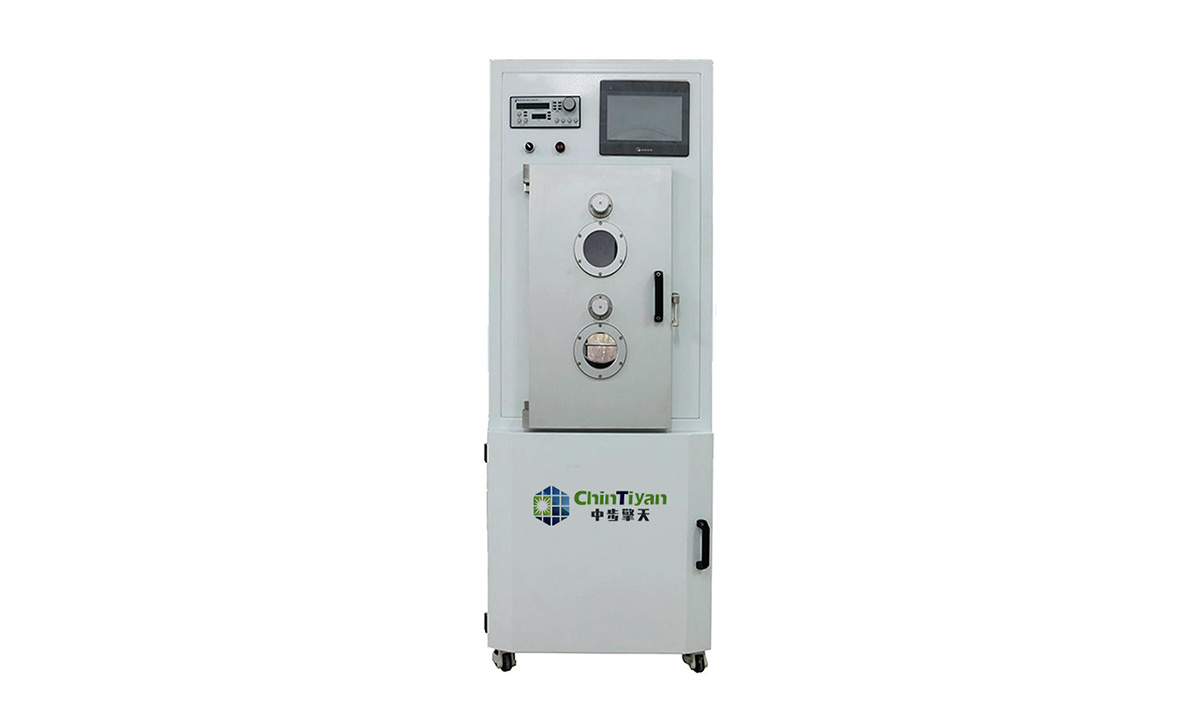

Hole transport layer deposition
Coating or depositing hole transport materials (e.g., Spiro-OMeTAD, PTAA).
这里是占位文字
Perovskite layer deposition (core)
Large-area coating of perovskite precursor solutions (spin coating,blade coating, slot coating, etc.), with precise crystallization control (solvent engineering, annealing).
这里是占位文字

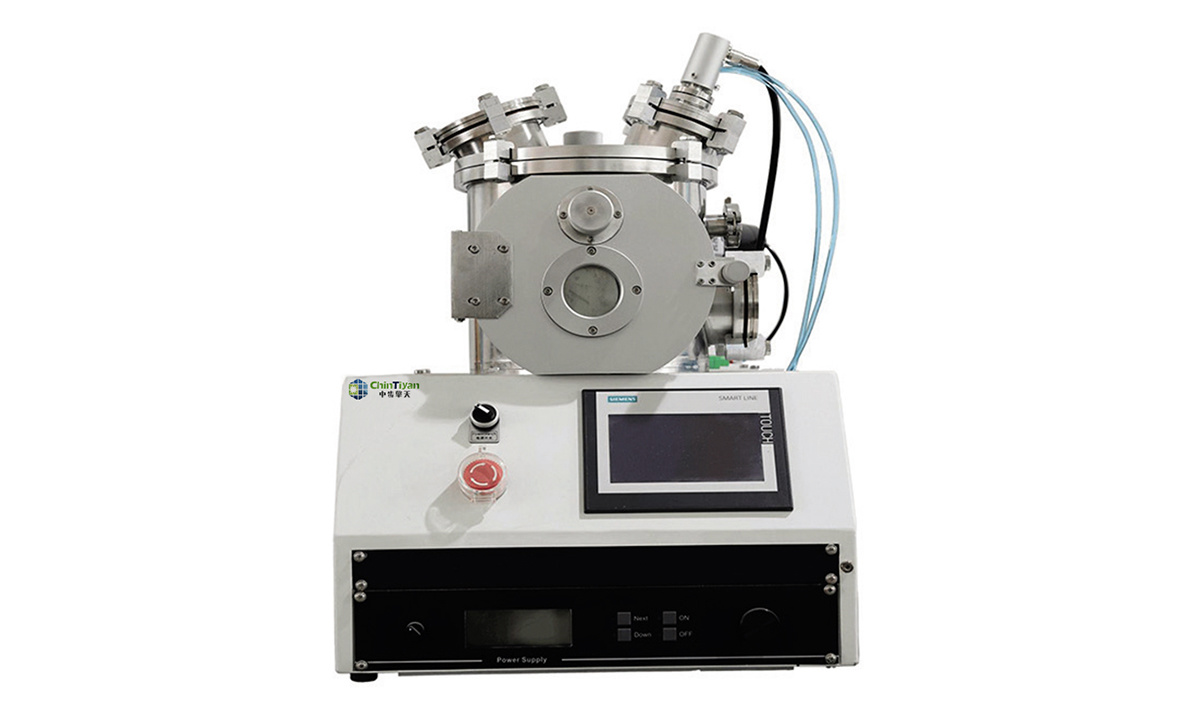

Electron transport layer deposition
Coat or deposit electron transport materials (e.g., SnO₂, TiO₂).
这里是占位文字

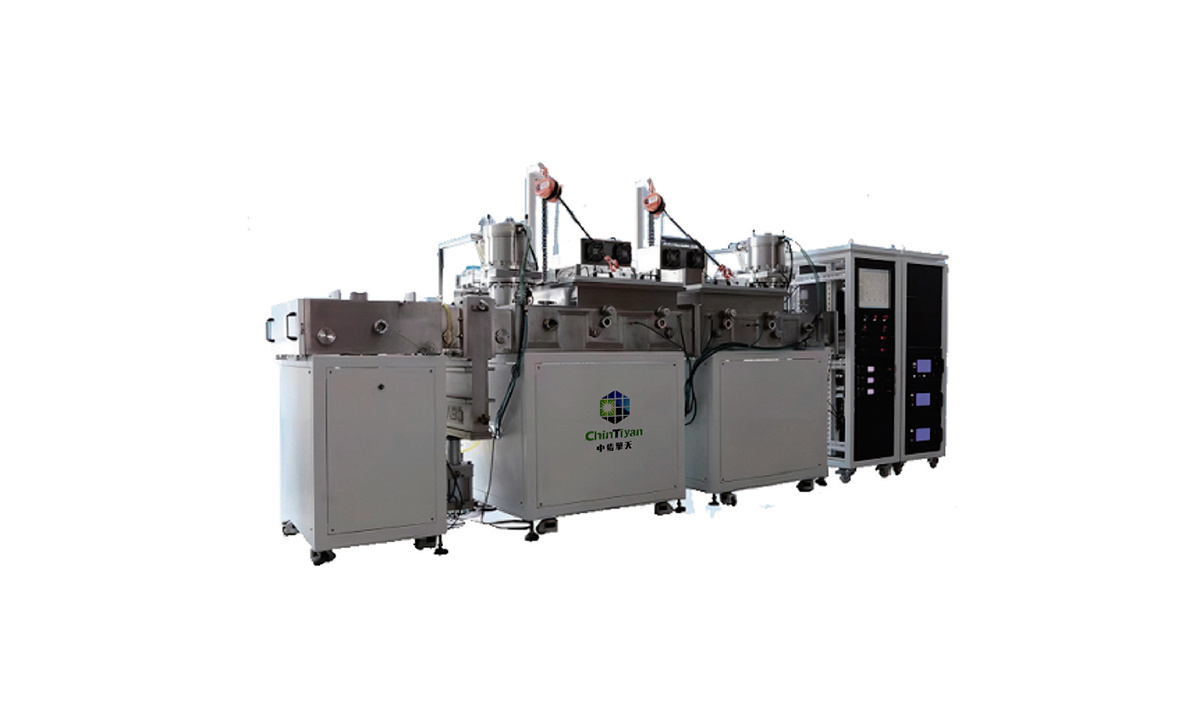

Transparent electrode deposition
Prepare a transparent conductive layer (e.g., sputtered ITO) on the substrate.
这里是占位文字
Substrate cleaning and treatment
Clean transparent conductive glass (ITO/FTO) or flexible substrates and perform surface activation treatment (e.g., UV-O₃).
这里是占位文字
